A buyer asks for a 10 kΩ NTC probe rated to 150 °C. What arrives is an assembly in which the bead is comfortable at 150 °C, the epoxy is at its published edge, the PVC-jacketed lead is well past its rating, and the crimp is the part that will actually open. Four of those five regions are on a datasheet somewhere. One is not.

What each interface governs

The joint is the one you have to ask about

The joint is where a fine element lead — frequently a different metal from the extension conductor — meets the cable. Welded, soldered, crimped and ultrasonically bonded joints all work in production and all fail differently. A joint that passes a bench continuity check can still open intermittently after a few thousand thermal cycles, and an intermittent open in a control loop presents as a sensor fault long before anyone suspects a mechanical one.

There is an industry framework for this, and buyers can quote it directly. IPC/WHMA-A-620, Requirements and Acceptance for Cable and Wire Harness Assemblies, sets out three acceptance classes and, in its Chapter 19, defines pull-force testing, crimp-height measurement and crimp-force monitoring. It also sets inspection conditions that are easy to check on a factory visit: magnification is graded by conductor size — conductors above roughly 1.63 mm (14 AWG) may be inspected unaided, 1.63 mm down to 0.64 mm (14–22 AWG) require about 1.5× to 3×, and finer gauges of 24–30 AWG require roughly 4× to 10× — with illumination of at least 1000 lux.

The three questions that separate a real process from a described one

1. "Which acceptance class do you build to, and is it on the drawing?" Class 1, 2 and 3 are not marketing tiers; they change what counts as a defect. A supplier who answers "we build to your requirement" has not answered.
2. "What is your pull-test sampling frequency, and what triggers a re-test?" Common practice is first article at the start of a run, after every die change or machine adjustment, at intervals through continuous production, and a last article at the end. Weekly sampling does not track tool wear; a die can drift out of its crimp-height window well inside a shift.

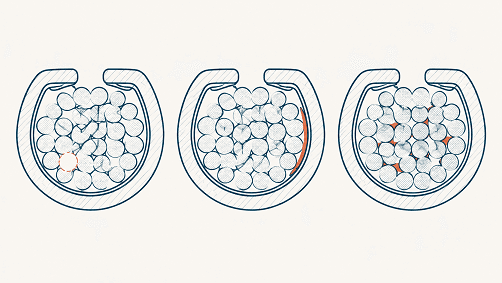

3. "Do you monitor crimp force, and what happens when the waveform deviates?" Crimp-force monitoring compares each cycle against a reference curve and can detect a missing strand, trapped insulation or insufficient compression, locking the press before the part moves down the line. Its value is that it is 100% and non-destructive, where pull testing is destructive and therefore always a sample.

A crimp that measures below the specified force still passes visual inspection every time. That is the whole reason the test exists.

Why the element is rarely the limiting interface

Consider a probe specified for a 150 °C process. The bead itself is a metal-oxide ceramic and is thermally comfortable well above that. The encapsulation is a polymer with a published continuous rating that may sit close to 150 °C. The lead insulation has a rating that depends on its UL style rather than on the polymer family name — the same "PTFE" designation appears in published listings at 200 °C, 250 °C and 260 °C depending on the construction. The joint has no rating at all, only a test. And the housing determines whether the element ever reaches process temperature in the first place.

Stack those and the binding constraint is usually the third or fourth item, not the first. This is also why "rated to 150 °C" is not a specification: it does not say which part is rated to 150 °C.

Housing is a thermal decision before it is a mechanical one

A metal housing couples the element to whatever it touches and adds thermal mass. A moulded or overmoulded body isolates slightly and adds less. Neither is better in the abstract. A probe in a stirred liquid wants coupling; a probe reading a surface through a clamp wants the smallest thermal mass available, or it averages away the thing it is measuring.

If a reading lags the process, the housing is the first suspect and the element is the last — mass and contact area dominate the time constant, and no element substitution recovers a housing that is too heavy for the loop. Overmoulded bodies also change the sealing question, because the seal is formed rather than assembled; the overmoulding guide covers that trade-off. Once the probe is fitted, how it is held against the surface takes over from the housing design — that is the subject of our guide to fitting practice.

Six lines that turn an enquiry into a build

Most enquiries specify the element and leave the other four interfaces to the supplier's default. That is how a probe with the correct resistance curve arrives with the wrong cable.

Next step

If you can answer all six lines, a supplier can quote a build rather than a catalogue part. If two of them are blank, those two are where the last sensor problem came from.
